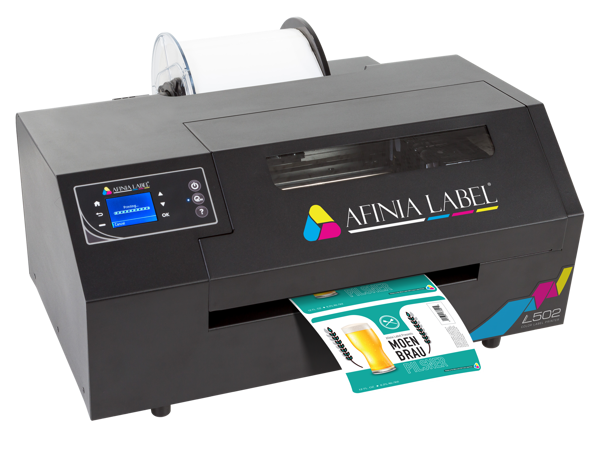

Afinia L502 Color Label Printer

Afinia L502 Color Label Printer (Pigment) – sustainable industrial label printing

The Afinia L502 Color Label Printer (pigment) is a robust color label printer developed for businesses that require extra durable and weather-resistant labels. With pigment-based inks, it delivers high resistance to moisture, chemicals, UV light and wear – perfect for demanding environments.

Main characteristics

• Pigment-based ink (CMYK): provides very high durability and long life
• BS5609 certification: meets chemical and GHS labeling requirements
• Print resolution: up to 4800 dpi for sharp details
• Print width: up to 216 mm
• Industrial design: robust metal chassis for continuous operation

Technology and features

• HP Thermal Inkjet technology for high precision and reliability
• DuraPrime™ Duo Ink system: possibility to use both pigment and dye inks (interchangeable printheads)
• Separate CMYK cartridges: reduce ink waste and lower cost per label
• Improved sensors: also handles special materials like metallic labels
• Smooth operation: features like pause, cut and easy firmware update

Benefits of pigment inks

• Very high resistance to:
  • Water and moisture
  • Chemicals and solvents
  • UV light and fading
  • Scratches and wear
• Ideal for labels exposed to harsh environments

Materials and flexibility

• Support for many materials: paper, PP, polyester, vinyl, etc.
• Media width: approx. 25-216 mm
• Max roll diameter: approx 203 mm
• Also available in fanfold version (F502) for alternative feeding needs

Areas of use

• Chemical and GHS labels
• Food & beverage (refrigerated/humid environments)
• Cosmetics and hygiene products
• Logistics, warehousing and industry
• Pharma and nutraceutical

Capacity & target audience

• Recommended volume: approx. 2 500 – 20 000+ labels/month
• Suitable for:
  • Small to medium-sized productions
  • Companies with sustainable label requirements
  • In-house production instead of outsourcing
