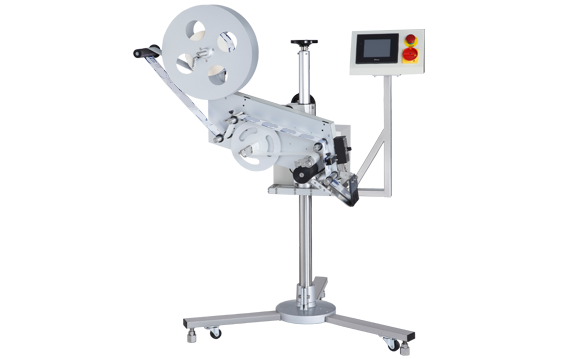

The LAB8010T marking head is a reliable solution for different production plans. The seamless integration into existing production lines
ensures repeatable labeling and accurate results. Mounted on a portable stand with wheels, the LAB8010T allows for quick site changes,
especially beneficial when relocating production facilities. Users can improve production efficiency by using versatile labeling methods
for top or side labeling. Optional options include hot stamp printers, thermal transfer, or a print and apply system.
Efficient top labeling with LAB8010T Top Stand Applicator
The LAB8010T Top Stand Applicator is ideal for top labeling on flat packaging products. A simple changeover without tools
ensures maximum productivity. The excellent stability of the labeling machine is reflected in outstanding performance results
of your labeled products. Operated via a PLC-based control panel with an advanced touch screen, it is user-friendly
and easy to learn. Integrated instructions and troubleshooting tools reduce training time and ensure the highest productivity.
Additional features for efficient management and quality control
Specially designed features support not only basic labeling tasks, but also management and quality control.
Stainless steel stand with movable wheels and a fixed stainless steel screw combines mobility and stability in a compact design.
The wide conveyor is versatile in product and the height can be easily adjusted to suit different production lines.
These additional features not only improve labeling efficiency, but also give users greater flexibility to adapt to different
production requirements. In summary, this results in a mobile, stable, flexible and efficient labeling solution.
The main points of LAB8010T
Technical specifications
| Model | ADR LAB8010T |
| Label Length | Min: 15mm (0.59′) Max: 300mm (11.81′) |
| Inner label roll | 46mm (1.81′) OR 76mm (2.99′) |
| Outer label roll | Max: 375mm (14.76′) |
| Gap between labels | Min: 3mm (0.12′) OR more |
| Applicator height | 150mm/200mm |
| Maximum speed for dispensing | 40m/minute |
| Label head driver | Stepper motor drive |
| System dimensions (mm) | L:1000 x W: 920 x H: 1100mm |
| Power consumption | 820 VA |
| Supply voltage | 220/110 VAC 50/60HZ 1 Phase |
| Net weight | Approx. 60 Kgs |
| Certifications | FCC, CE, RoHS |
